Triton Danzi DuElec Electric Shower

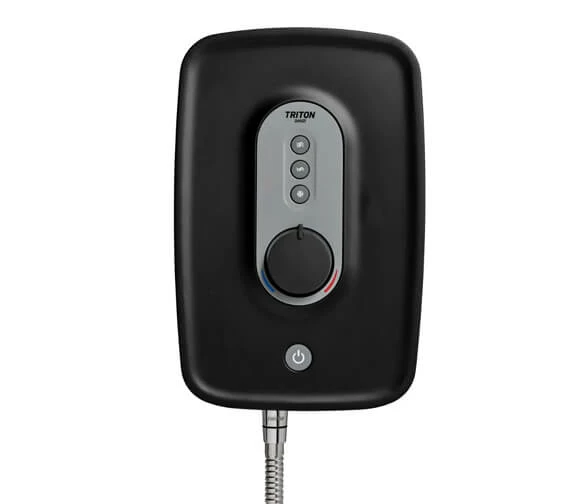

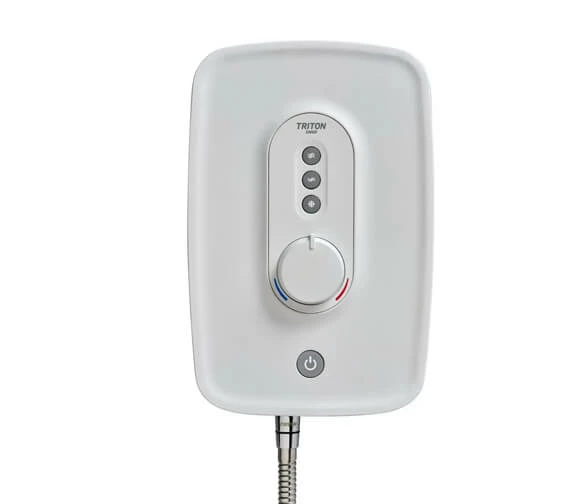

The charm of the Triton Danzi DuElec Electric Shower lies in its clean, minimalistic design that blends seamlessly with every decor. Built to provide optimum convenience, it incorporates an Electric Unit with Push-button power control, stabilised temperature control for safe showering, shower head, hand shower, slider rail and hose. The entire assortment is designed to update any shower room’s style and functionality quotient. Finished in white or black, it strikes the right balance between dramatic and refined with its brilliant mix of square and circular forms.

• Available Power Ratings: 9.5KW, 10.5KW.
• Size of electric unit: 215mm x 90mm x 328mm [Width x Depth x Height].
• Safety: Low-pressure indicator.
• Controls:.
• Start/Stop Button.
• Push-button power control.
• Stabilised temperature Control.
• Shower Fittings:.
• Shower head diameter: 110mm/4 inches (handheld), 203mm/8 inches.
• Rub clean nozzles.
• Rail diameter: 20.5mm/0.81inches.
• Rail length: 1007mm/40 inches.
• Distance between rail brackets: 728mm/28.7 inches.
• Twist-and-lock shower head holder mechanism.

• Hose length: 1.5m anti-twist (main hose); 0.75m (connector hose).
• Includes: hose retainer.
• Hose material: Double Interlocked Stainless Steel.
• Installation:.
• Plumbing system: Cold mains.
• Water entry points: Right-Hand Side – Bottom Back, Bottom, Bottom Side.
• Cable entry points: Right-Hand Side – Top, Middle Back.
• Outlet connection: 1/2″ BSP male thread.
• Minimum running pressure / Flow: 1 Bar at 8 l/min, 1.5 Bar at 11l/min for 10.5kW.
• Maximum static pressure: 10 Bar.
• Approvals: BEAB, CE, BSI Kitemark, IPX4.

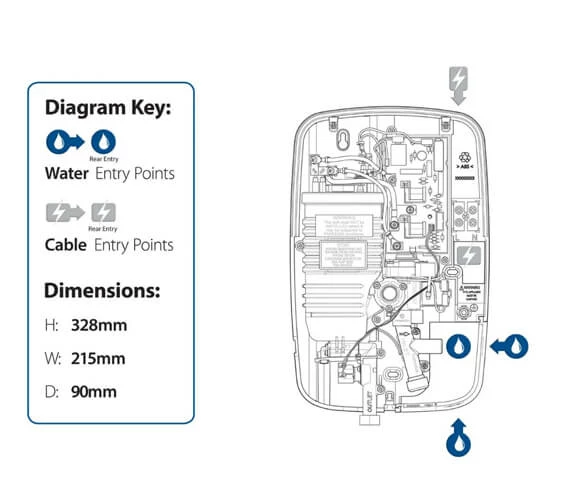

• Refer to the technical diagram for the complete technical dimension.
• Download the Installation Instruction PDF File From The Additional Info Section.
