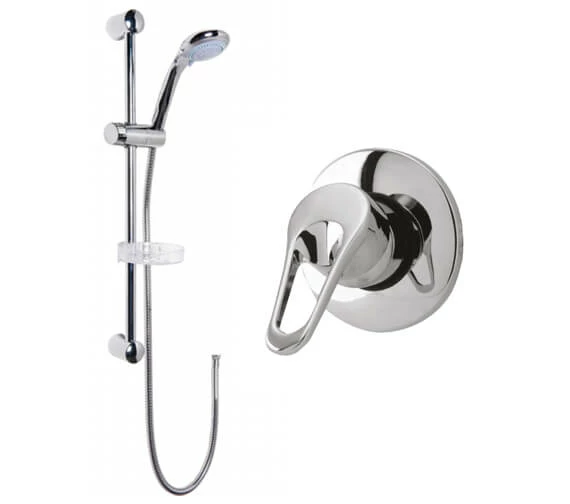

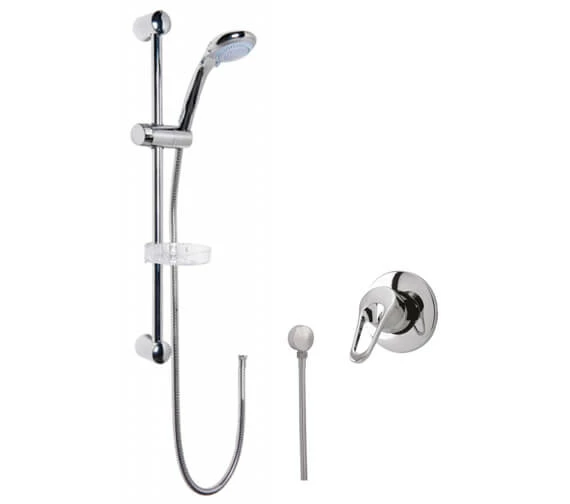

Nuie Round Chrome Manual Valve With Slide Rail Kit Or Shower Head And Arm

Nuie Round Manual Shower Valve With Slide Rail Kit is the perfect fusion of advanced technology and stylish design and will endow you with endless refreshing showering moments. Designed to perfection, this shower mixer valve is manufactured from ABS and brass material and is finished in gleaming chrome for an appealing look. The valve includes a kit that facilitates effortless operation. Perfect solution for quick, easy installation of your new shower system, It is suitable for a low water pressure system. Backed by a five-year manufacturer guarantee against any manufacturing faults and available at an attractive price from our online store.

• Available in different variants [Optional].
• Completes set in chrome finish.
• Design: round.
• Mounted type: surface and wall.
• Download Customer Data Sheet PDF File from the Additional Info Section.

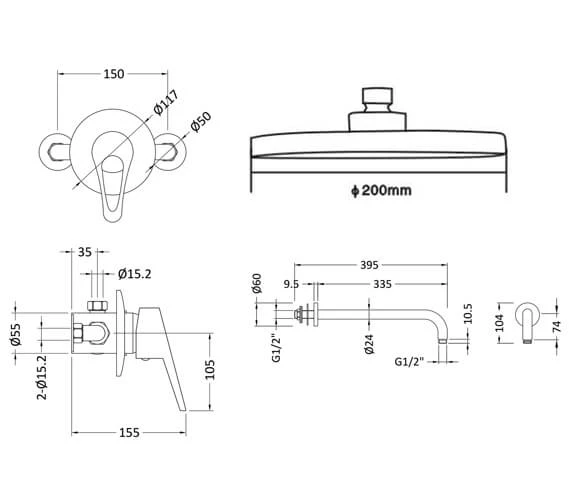

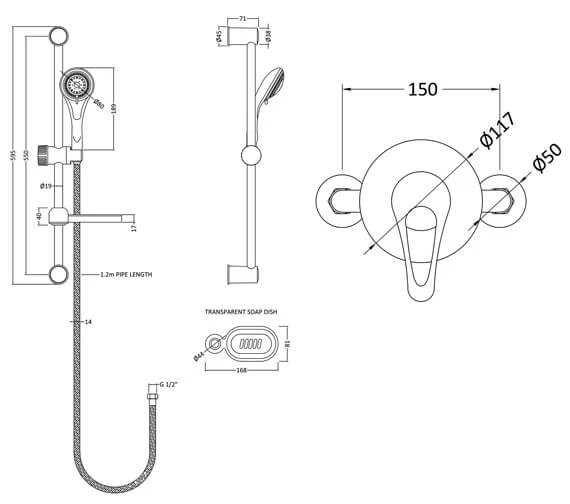

• Technical drawing available for more technical Specification.
• Five years guarantee from Nuie against manufacturing defects.
• Specification For Ocean Shower Valve:.
• Suitable for concealed or exposed installation.
• Size: Width 150mm x Depth 155mm x Height 117mm.
• Weight: 1.72kg.
• Manufactured using brass material.
• Single lever cartridge.
• Pipe size: 15mm (1/2inch BSP).
• Pipe centres: 150mm.
• Suitable for low water pressure system.
• Required Minimum 0.2 water pressure.
• Specification For Slide Rail Kit:.
• Height: 595mm.
• Inlet connection: G 1/2 inch.

• Weight: 0.68kg.
• Pipe size: 15mm (1/2inch BSP).
• Manufactured using ABS and brass material.
• Suitable for low water pressure system.
• Required minimum 0.1 water pressure.
• Specifications For Outlet Elbow:.
• Size: Diameter Ø53mm x Depth 26 mm.
• Weight: 0.2kg.
• Manufactured using plastic material.
• Specification For Shower Arm:.
• Length: 395mm.
• Inlet connection: G 1/2inch.
• Weight: 0.32kg.
• Manufactured using brass material.
• Specification For Shower Head:.
• Diameter: Ø200mm.
• Weight: 0.37kg.
• Manufactured using brass and ABS material.
• Suitable for low water pressure system.
• Required minimum 0.2 bar water pressure.
