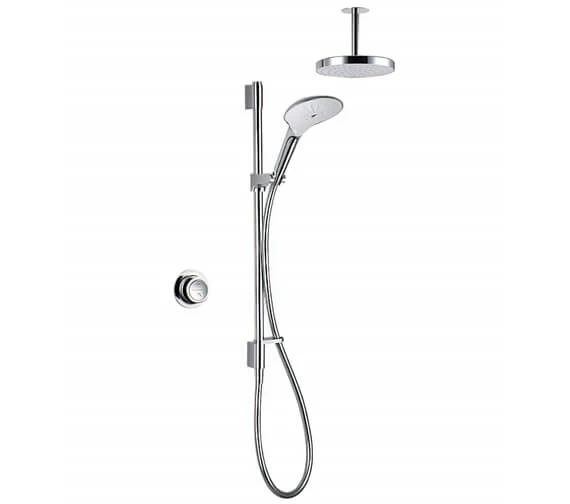

Mira Mode Maxim Concealed Dual Thermostatic Digital Mixer Shower White-Chrome

Conserve water and enjoy a more relaxing shower experience with the Mira Mode Maxim Concealed Dual Thermostatic Digital Mixer Shower. A luxurious 300mm deluge shower head allows for easy rinsing and can soothe tension. It features CloudCore™ technology – delivers a saturating mist spray, and has a 4 Spray pattern hand shower that offers Saturate, Soak, Stimulate and Soothe spray types. With this digital mixer shower, you never have to worry about scalding as the Thermostatic temperature stability with digital intelligence will ensure that water temperature remains stable. Suitable for all Plumbing systems, it comes with a five years guarantee from Mira against manufacturing defects.

• Available in pumped for Gravity valve only.
• Ceiling mount or rear-fed fittings – [Optional].
• Luxurious 300mm deluge showerhead.
• Size of digital mixer: Ø94mm x Depth 41mm.
• Digital shower designed to complement a contemporary bathroom perfectly.

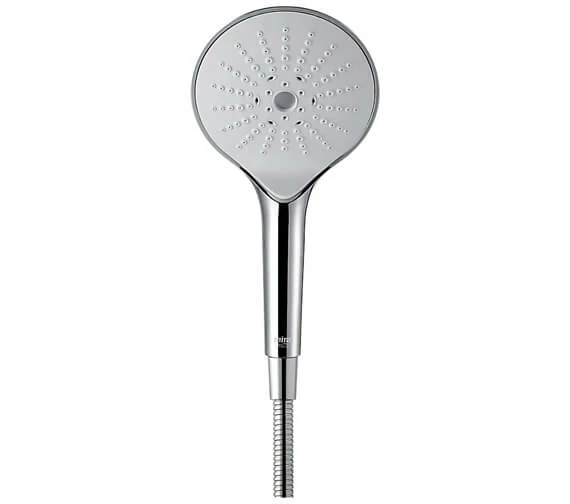

• 4 Spray pattern hand shower – Saturate, Soak, Stimulate and Soothe.
• Easy Clean – removable central mist core overhead with optional secondary spray for hard water installations.
• Indicator light signals when the shower has reached the desired temperature.
• Maximum temperature setting for increased safety.
• Large, long-life filters.
• Replaceable check-valve and filters.
• Supplied with push-fit isolators.

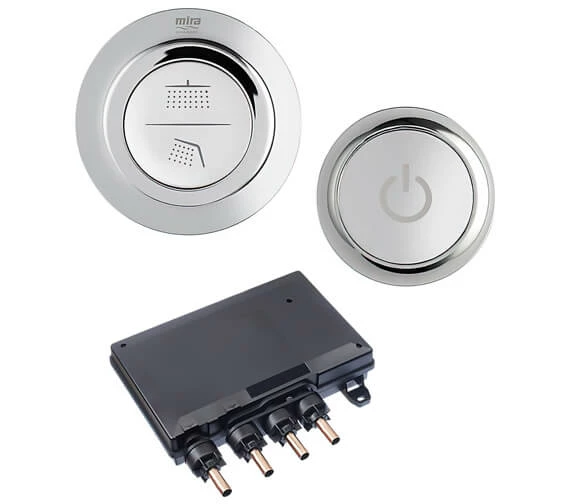

• Rotary temperature control dial.
• Personalise showering settings using the Mira Mode app.
• Reversed inlets support: No – hot left, cold right only.
• Water Entry Points – Back, Rear Fed; Top, Ceiling Fed.
• Inlet Connections: 15mm push-fit isolators (supplied) or 15mm compression.
• Inlet connections: 15mm compression, 3/4″ BSP to valve.

• Outlet connection: 1/2″ BSP Male to flexible hose.
• Data Connection to Digital Mixer: Low Voltage Data Cable.
• Data Connection to the control unit and fittings: Low Voltage Data Cable.
• Supply voltage: 230v + 10%.
• Supply rating: 3 amp.
• Temperature stability: +/- 1°C.
• Phase shutdown: Yes.
• Cold water range: Up to 25°C.
• Factory set to safe max temp: Factory set at 45° C.
• Download the Installation and User Guide PDF File from the Additional Info Section.

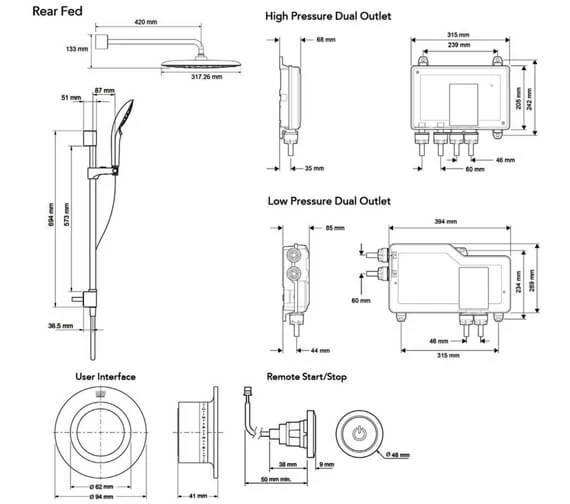

• Refer to the technical drawing for more technical specifications.
• Feature of Pumped for Gravity.
• Flow rate: up to 16 l/min at 0.1 bar.
• Minimum maintained pressure: 0.01 bar (10 cm head).
• Maximum supported pressure: 1.0 bar (10-metre head).
• Maximum static pressure: 1.0 bar (10-metre head).
• Size of the controller: Width 394 x Depth 85 x Height 289mm.
• Height of rigid riser: 650mm.
