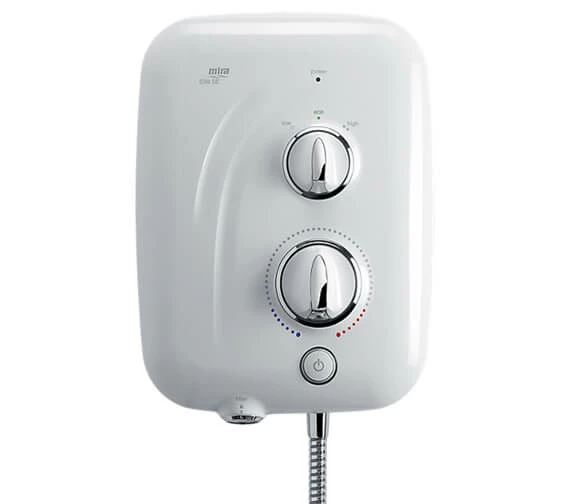

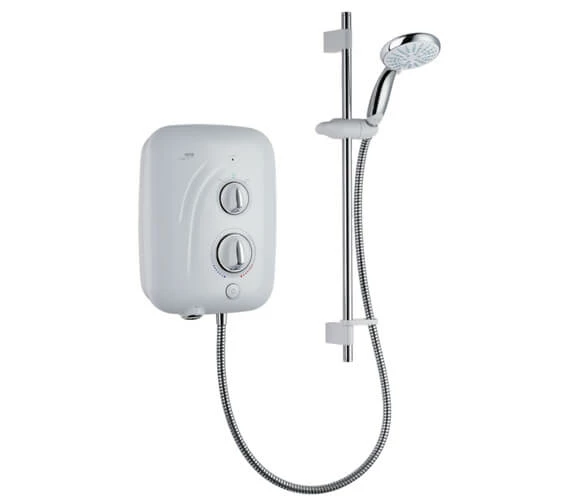

Mira Elite SE Pumped Electric Shower White And Chrome

Mira Elite SE Pumped Electric Shower comes in 2 options of 9.8 kW and 10.8 kW. Designed for gravity-fed systems, it comes in White and Chrome finish and has a silent running pumped electric shower. Its slide bar measures 630mm and has a Large four spray shower head for greater coverage. It comes with rub-clean nozzles for ease of cleaning and an adjustable slide bar that fits over holes left by the previous shower kit. An integrated pump boosts your shower on a low-pressure system for quiet and efficient running. Perfect for large households, this unit comes with BEAB and WRAS approval.

• Available in 9.8 KW and 10.8 KW [Optional].
• It comes in a White and Chrome finish.
• Silent running pumped electric shower.
• Designed for a gravity-fed system.
• Height of slide bar: 630mm.
• Fixing Centres: min. 400 and max. 635mm.
• Size of Electric shower box. Width 270 x Depth 110 x Height 363mm.

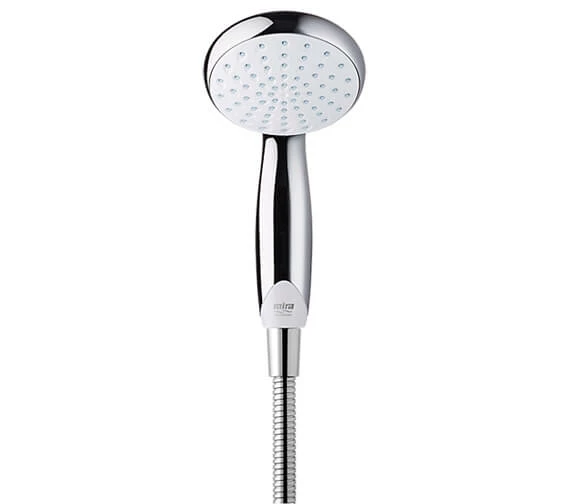

• Large four-spray shower head for greater coverage.
• The adjustable slide bar fits over the holes left by the previous shower kit.
• An integrated pump boosts your shower on a low-pressure system.
• So quiet that when the water is running, you won’t hear the pump.
• Pressure stabilised temperature control.
• Supply voltage: 230V +/- 10%.
• Supply rating: 45 amp.
• Terminal block: Max. 16mm compression.

• Water entry point: Left (rising, falling & rear).
• Cable entry point: Left (rising, falling & rear).
• Cut-out removable case insert.
• Brass inlet connector with 15mm compression fitting.
• 1/2″ BSP male outlet connection.
• Minimum maintained pressure: 0.008 bar (80mm head).
• Maximum maintained pressure: 1.0 bar (10m head).
• Temperature stability: +/- 6°C.
• Perfect for large households.
• Energy efficiency: Class A.
• Continuously rated, meaning you can run the shower for as long as you need.
• Designed for easy access and features built-in isolation for easy cleaning.
• Suitable to use with a cold gravity supply system.
• Refer to the technical drawing for more technical specifications.
