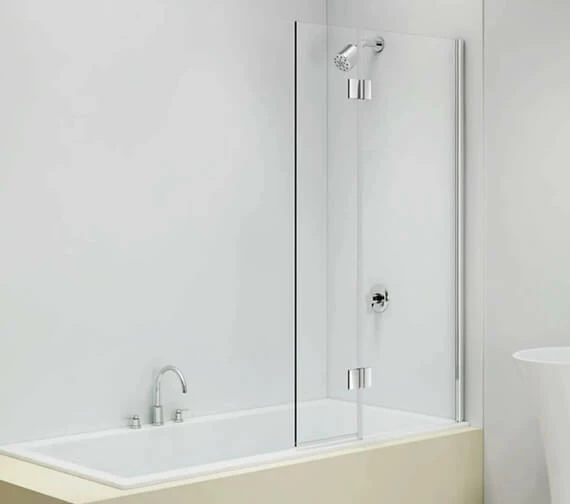

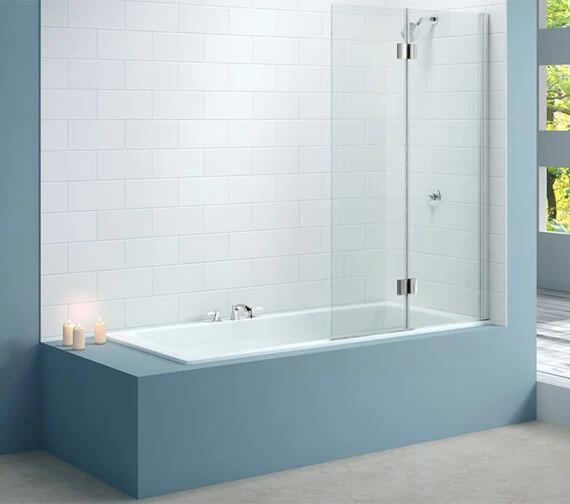

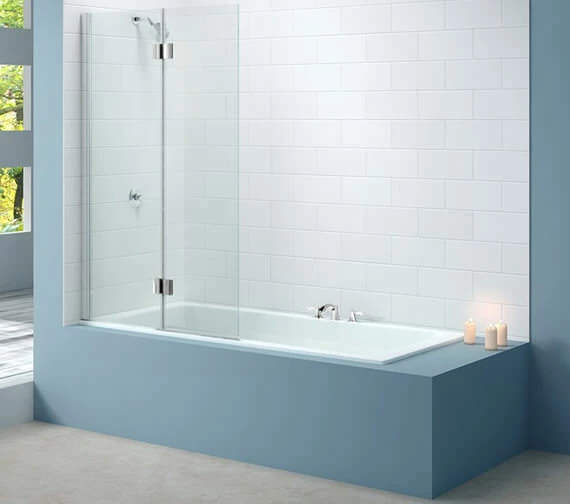

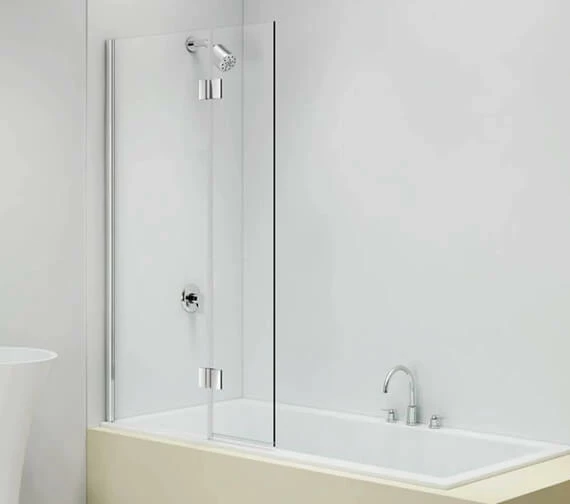

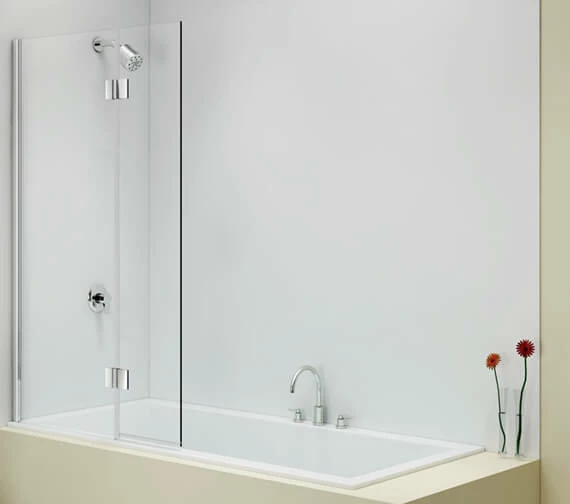

Merlyn MB7 Two Panel Hinged Bath Screen

Add a sense of comfort and privacy and have a serene bathing experience by adding Merlyn’s 2 Panel Hinged Bath Screen. The frame-less creation boasts designer, chrome hinges with built-in stop mechanism. It is made from 8mm toughened safety glass that is protected with Mershield StayClear coating. This left-handed screen comes with adjustable wall profile and fully concealed fixings, for convenience. Now you can enjoy luxurious showers with comfort and style.

• Frameless 2 panel screen with designer chrome hinges.
• Available in two width sizes : 850mm & 900mm.

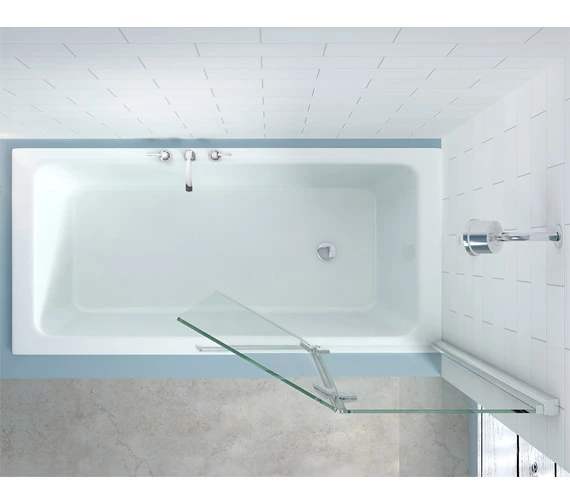

• 180-degree hinged moving panel.
• Bath and brassware shown in the image is not included.
• Reversible – Left or right-handed.
• Specification of 850mm Bath Screen :.
• Width 850 x Height 1500mm.
• Swing: 180 Degrees inwards only.

• Fixed Panel = 505mm.
• The radius of Screen Swing = 290mm.

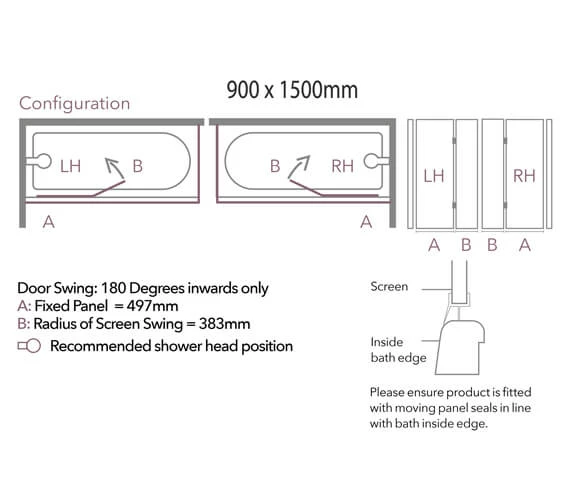

• Specification of 900mm Bath Screen :.
• Width 900 x Height 1500mm.
• Swing: 180 Degrees inwards only.
• Fixed Panel = 497mm.
• The radius of Screen Swing = 383mm.

Please Note that although the moving panel can be used to deflect water spray this does not guarantee a water tight enclosure and water may escape under the angled panel.
