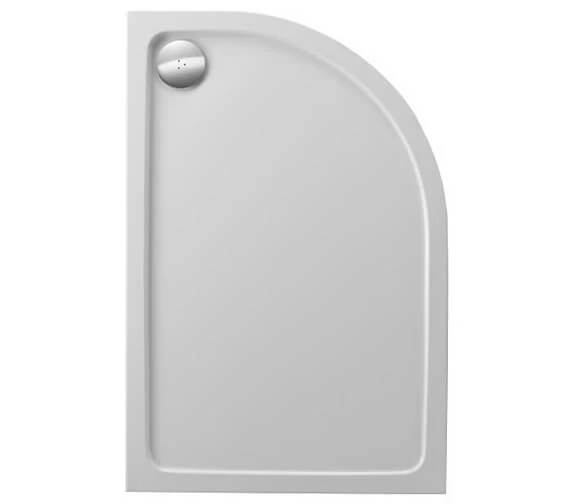

Just Trays JTFusion Offset Quadrant Flat Top Shower Tray With Waste

The Just Trays JTFusion Offset Quadrant Flat Top Anti-Slip Shower Tray with Waste is manufactured from ABS capped acrylic stone resin and featured a double-skinned layout for extra levels of strength. This unit comes supplied with a JT90mm concealed waste with an easily removable cap that allows 48 litres of water to be removed each minute. Easy fit legs make for quick and simple installation when used with JT Fusion Offset Quadrant Kit, though this product is capable of being installed flat on the floor as well.

• Available sizes: 900mm x 760mm, 1000mm x 800mm, 1200mm x 800mm, 1200mm x 900mm.

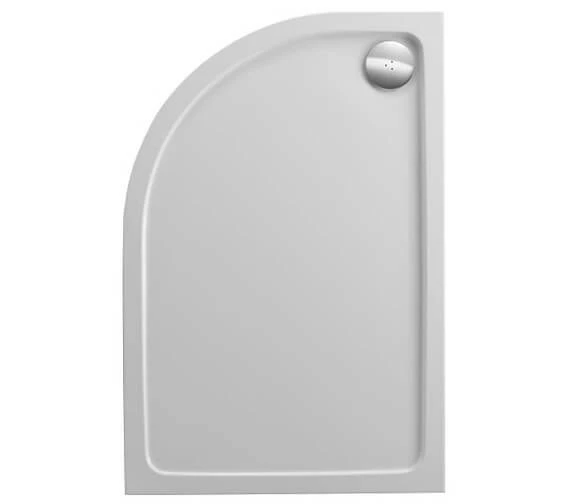

• Available tray position: Left Handed, Right Handed.
• Installs flat to floor or on legs with a JT Fusion Offset Quadrant Kit – FP1290Q100C – [Optional].

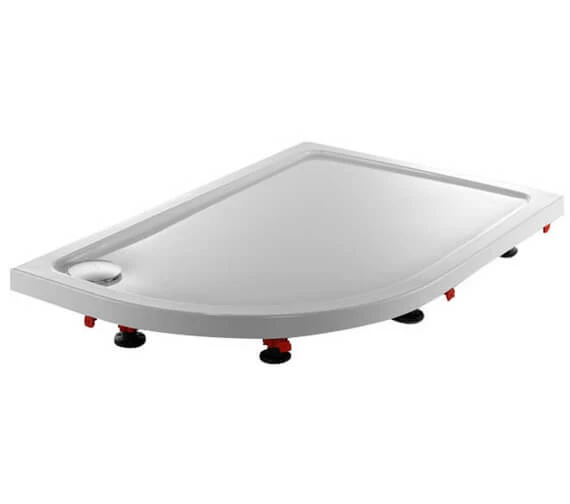

• Easy-fit legs for quicker installation.

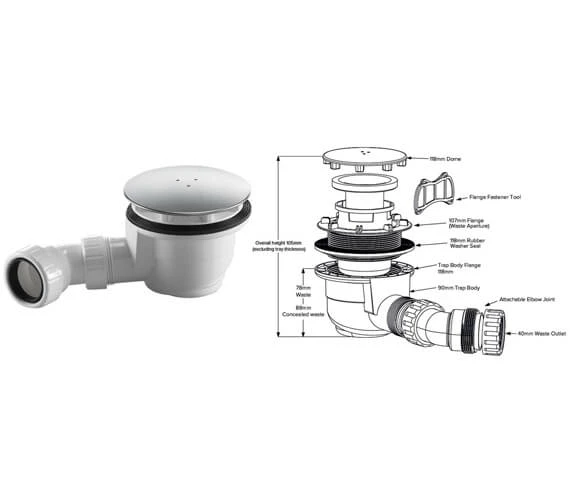

• A waste outlet that allows 48 litres of water to be carried away each minute.
• Waste features an easily removable cap.
• Download the Installation Instruction PDF File from the Additional Info Section.

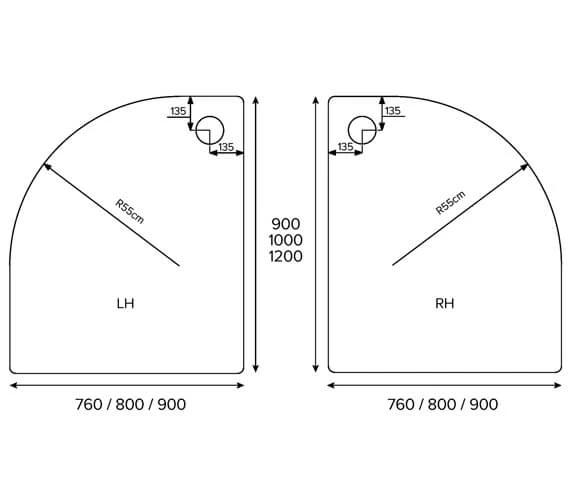

• Refer to the technical diagram for complete technical dimensions.

Note: If your shower tray is a flat top, but you want the added benefits and security of a tiling up-stand, JTFLEXI-FIX is the ideal solution. The flexible, self-adhesive, tiling up-stand tape wraps around the corner in 1 piece and creates a water-tight seal that fits the vertical movement of at least 15mm.
