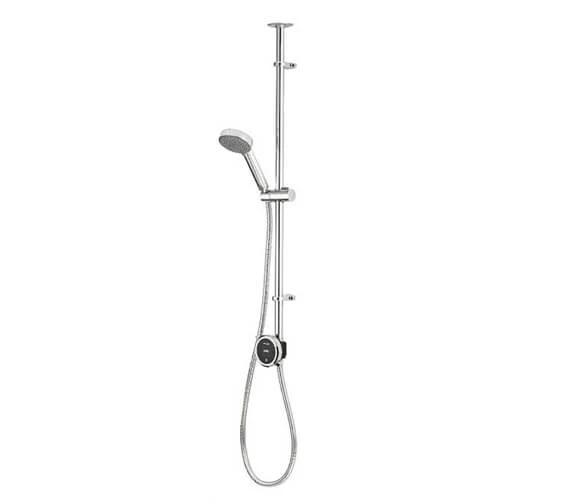

Aqualisa Quartz Touch Exposed Smart Digital Mixer Shower

Aqualisa Quartz Touch Exposed Smart Digital Mixer Shower comes to you in 2 variants of HP – Combi and Gravity Pump. The single outlet exposed digital shower valve will add a sophisticated look to the surroundings and perform its task of mixing hot and cold water feeds to give you a balanced flow. This digital shower is an innovative convergence of technology and style and helps you transform your showering space into a luxury one.

Equipped with the latest technology and splendid design, finished in chrome, this fixture incorporates a single outlet exposed digital shower valve, four-mode shower handset and 1500mm metal hose to provide a remarkable showering experience. Suitable to work with high pressure water systems, it carries a five-year guarantee for the Valve and two years for the kit.

• Available in 2 variants: HP – Combi, Gravity Pump.

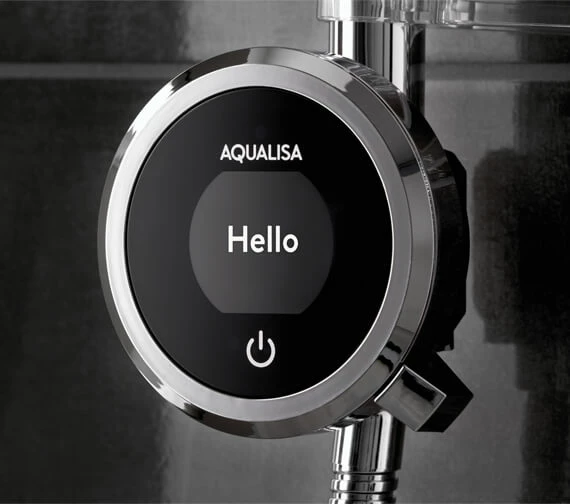

• Single outlet exposed digital shower valve.

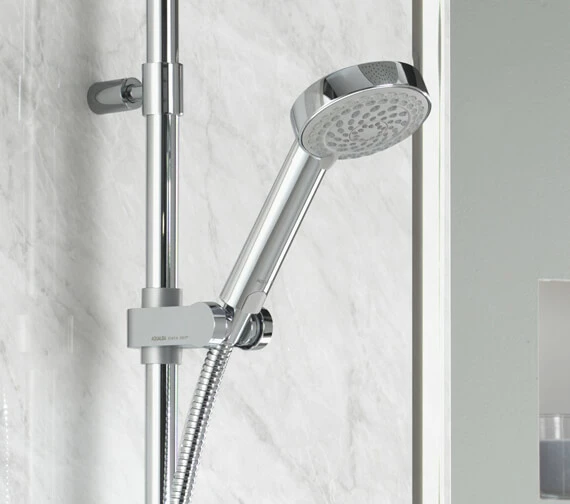

• 105mm 4 mode shower handset (Inner, Middle, Outer, Eco).
• 1500mm metal hose included.
• Optional Eco mode on the Smart valve, which can be selected for water saving up to 33%.
• WiFi, Mobile App, Google Home & Amazon Alexa let you control your shower remotely.
• Optional wireless remote.
• Rail length: Height 1020mm x Width 25mm.
• Controller/valve unit Size: 98 x 34 x 98mm [Width x Depth x Height].
• Electrical requirements: 240v.
• Inlet and Outlet fitting connections: 15mm push-fit.
• Water supply temp: 5°C min / 65°C max.

• 240v Electrical requirements.
• Cable and water entry point: Rear.

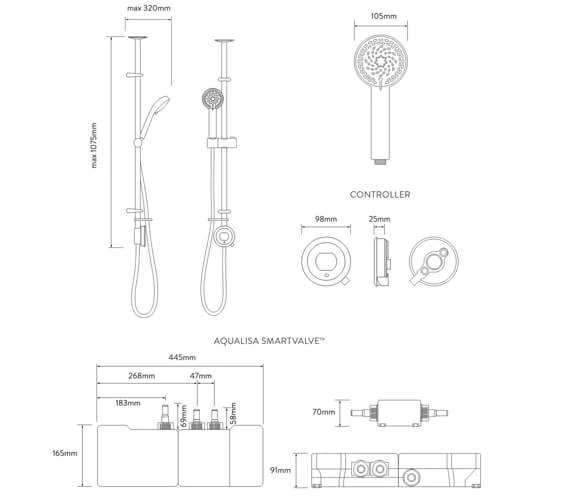

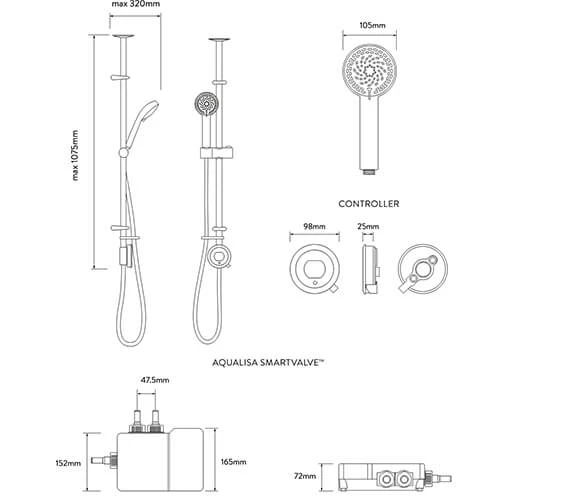

• Refer to the technical drawing for complete size details.
• Specifications for High-pressure combi system.
• Suitable to work with high-pressure water systems.
• Requires a minimum of 1 bar and a maximum of 7 bar of water pressure.
• Flow rates: 8-16 lpm.
• Specifications for Gravity Pumped.
• It comes with an integral pump.
• Suitable to work with low-pressure water systems.
• Requires a minimum of 0.1 bar and a maximum of 1 bar of water pressure.
• Flow rates: 10-16 lpm.
