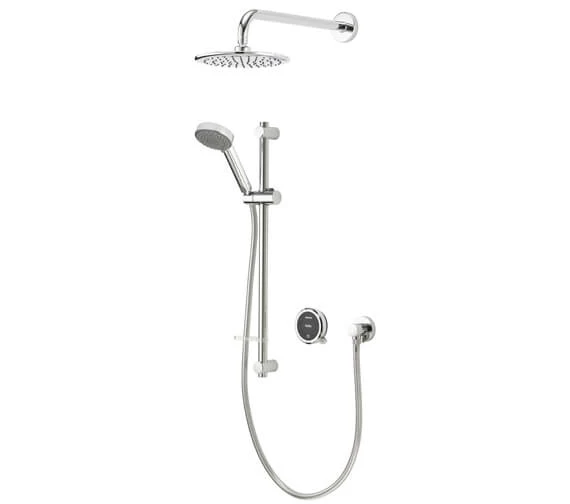

Aqualisa Quartz Touch Concealed Smart Digital Shower Valve With Kit

The Aqualisa Quartz Touch Concealed Smart Digital Shower Valve with Kit is available for purchase in two variations to choose from and comes supplied with a 230mm round fixed shower head, a 4-mode shower handset and a 1500mm long metal hose. Easily controlled via an Amazon Alexa or Google Home device, this model also boasts a water-saving eco-mode that can easily be selected for use on the smart valve itself. Requiring a 240V electrical setup, this product provides safe and truly high-quality showering with an adjustable maximum temperature, an auto wake-up feature, a timer, and so much more.

• Available in 2 variants: HP – Combi, Gravity Pump.

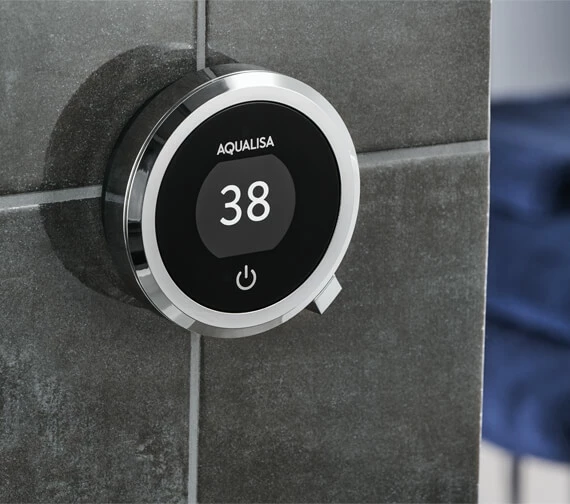

• Dual outlet Concealed digital shower valve.

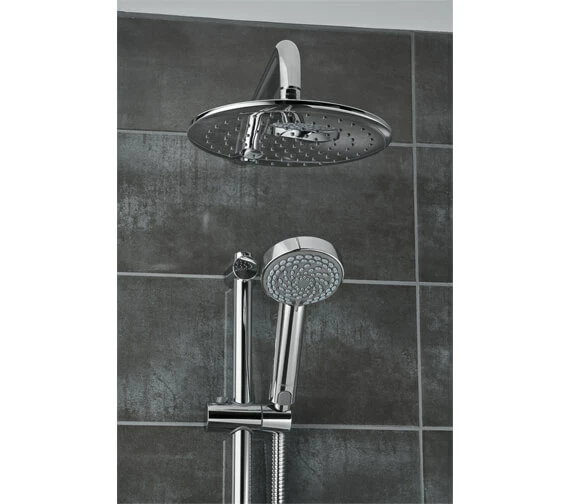

• Supplied with 230mm round fixed head.
• 105mm 4 mode shower handset (Inner, Middle, Outer, Eco).
• 1500mm metal hose included.
• WiFi, Mobile App, Google Home & Amazon Alexa enabled to allow you to control your shower remotely.
• Glide temperature control for simplistic use.
• Auto wake up when you approach the controller.
• Optional wireless remote.
• Rail length: Height 700mm x Width 25mm.
• Controller/valve unit Size: 98 x 34 x 98mm [Width x Depth x Height].
• Electrical requirements: 240v.
• Inlet and Outlet fitting connections: 15mm push-fit.

• Water supply temp: 5°C min / 65°C max.
• 240v Electrical requirements.
• Cable and water entry point: Rear.

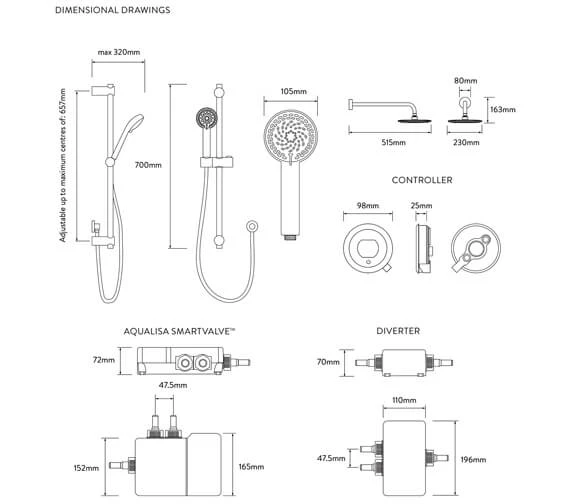

• Refer to the technical drawing for complete size details.
• Specifications for High-pressure combi system:.
• Suitable to work with high-pressure water systems.
• Requires a minimum of 1 bar and a maximum of 7 bar of water pressure.
• Flow rates: 8-16 lpm.
• Specifications for Gravity Pumped:.
• It comes with an integral pump.
• Suitable to work with low-pressure water systems.
• Requires a minimum of 0.1 bar and a maximum of 1 bar of water pressure.
• Flow rates: 10-16 lpm.
