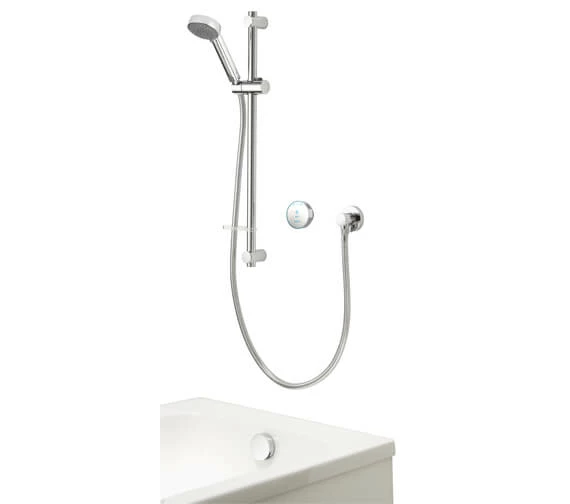

Aqualisa Quartz Slide Rail Kit With Digital Concealed Valve And Bath Filler

The majestically appealing Aqualisa Quartz Slide Rail Kit With Digital Concealed Valve And Bath Filler can be purchased with one of 2 variations of High pressure combi system or gravity pumped. This shower set is supplied with 90mm Harmony adjustable handset with four spray patterns including eco spray, 1500mm metal hose, Ø70mm Bath Filler, Intuitive LED display showing when the desired shower temperature has been reached, and compatibility with WiFi, Mobile App, Google Home & Amazon Alexa enabled to allow you to control your shower or bath remotely. The brilliant creation, in exclusive chrome finish, mingles with the other bathroom settings. It is manufactured from durable material that makes it effective and practical in use.

• Available in 2 variants: HP – Combi, Gravity Pump.
• Supplied with 90mm Harmony adjustable handset with four spray patterns, including eco spray.
• It comes with a 1500mm metal hose.
• Complete with Ø70mm Bath Filler.
• Rail length: Height 700mm x Width 25mm.

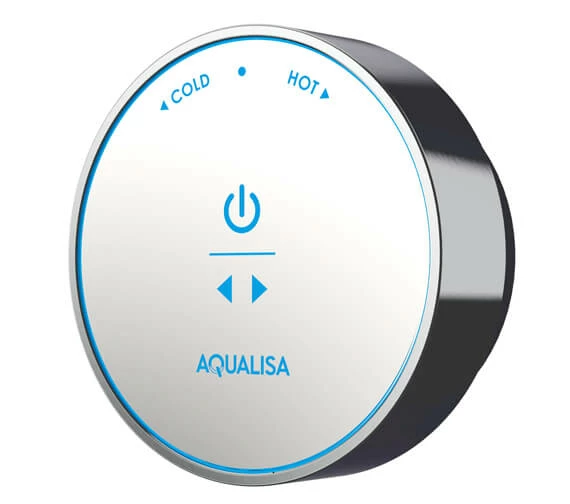

• Controller unit size: 72 x 36 x 72mm [Width x Depth x Height].
• WiFi, Mobile App, Google Home & Amazon Alexa enabled to allow you to control your shower or bath remotely.
• Multiple showers can be controlled from 1 app.
• Easy to use the button, one-touch divert control.
• Inlet and Outlet fitting connections: 15mm compression.
• Water supply temp: 5°C min / 65°C max.

• 240v Electrical requirements.
• Cable and water entry point: Rear.

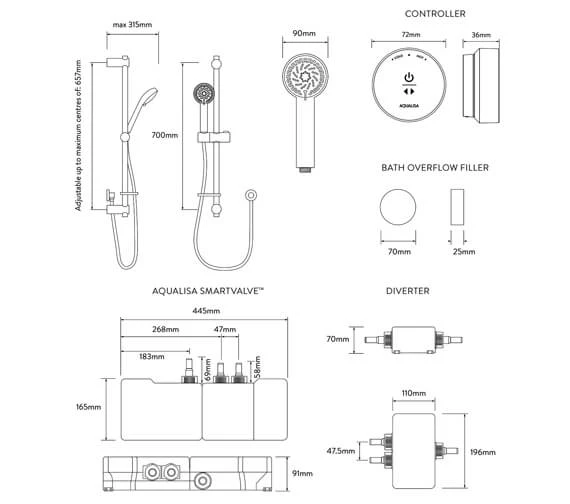

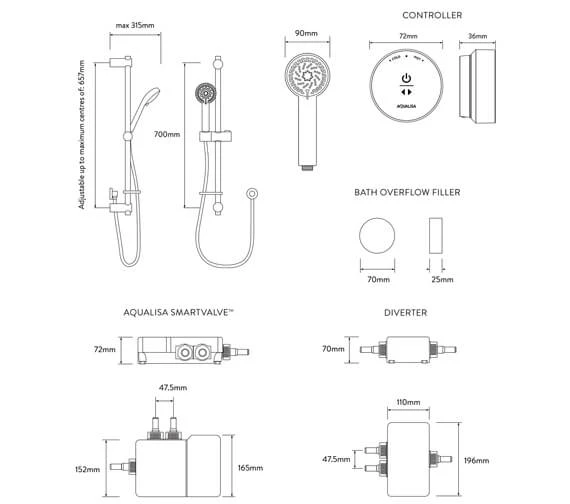

• Refer to the technical drawing for complete size details.
• Specifications for High-pressure combi system.
• Suitable to work with high-pressure water systems.
• Requires a minimum of 1 bar and a maximum of 7 bars of water pressure.
• Flow rates: 8-16 lpm.
• Specifications for Gravity Pumped.
• Suitable to work with low-pressure water systems.
• Requires a minimum of 0.1 bar and a maximum of 1 bar of water pressure.
• Flow rates: 10-16 lpm.
