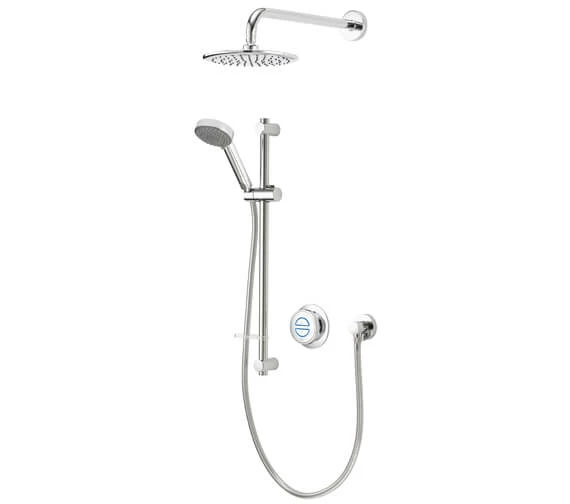

With understated elegance that belies its strength, the Aqualisa Quartz Classic Smart Concealed Valve With Riser Rail and Shower Head comes in a perfect round shape with a fabulous chrome finish and a host of features that add to its functional and style value. Rounded elements and an eco-setting also add value while ensuring an unmatched showering experience. Crafted from durable material, it is sturdy, long-lasting, and available from our online store at an excellent price. Suitable to work with high pressure water systems, it needs a minimum of 1 bar and a maximum of 7 bar of water pressure and is compatible with low and high pressure water systems.
- โThermostatically controlled showering with push-button one-start control
- โLED display to let you know your chosen temperature has been reached
- โGuarantee period: 5 years for the valve and two years for kit
- โWiFi, Mobile App, Google Home & Amazon Alexa enabled to allow you to control your shower remotely
- โThe shower headโs Eco-setting can produce water savings of up to 25% without compromising your showering experience
- Available in 2 variants: HP – Combi, Gravity Pump.
- Dual outlet concealed digital shower valve.
- Multiple showers can be controlled from 1 app.
- 1500mm Metal hose.
- Rail length: Height 700mm x Width 25mm.

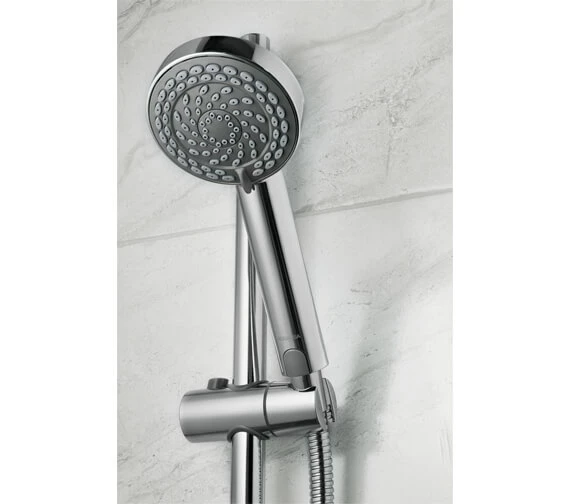

- 105mm Harmony handset with four spray patterns (Inner, Middle, Outer, Eco).

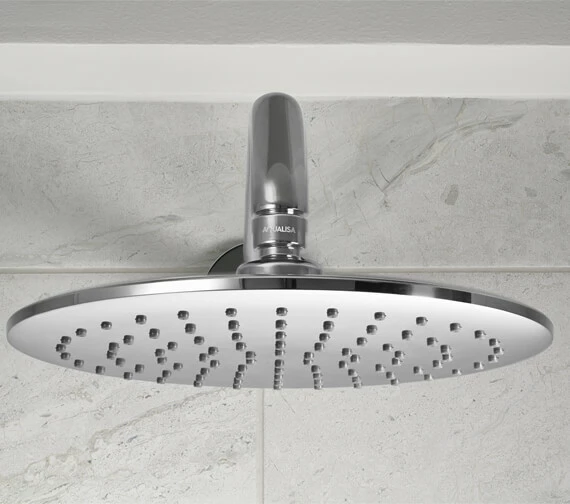

- 230mm round fixed wall shower head included.
- Compatible with wired remote control.
- Optional Eco mode on the Smart valve, which can select for water saving up to 33%.
- Controller unit size: 120 x 40 x 120mm [Width x Depth x Height].
- Inlet and Outlet fitting connections: 15mm push-fit.
- Water supply temp: 5ยฐC min / 65ยฐC max.
- 240v Electrical requirements.
- Cable and water entry point: Rear.

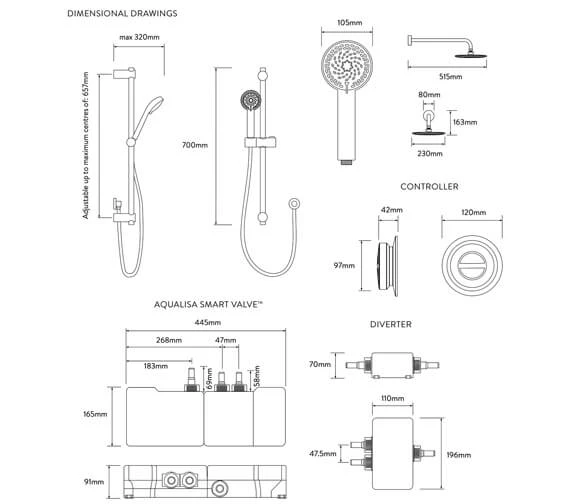

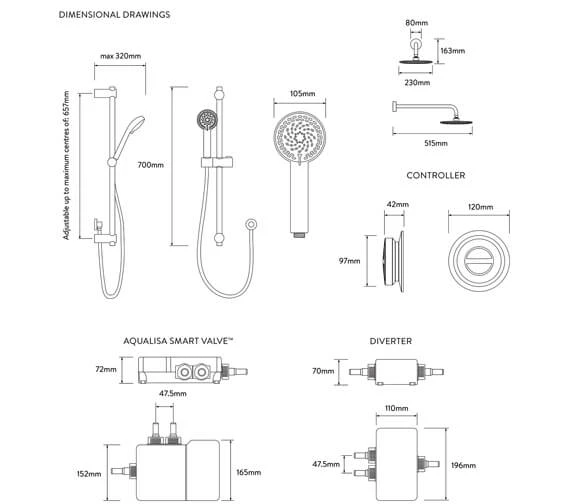

- Refer technical drawing for complete size details.
- Specifications for High-pressure combi system.
- Suitable to work with high-pressure water systems.
- Requires a minimum of 1 bar and a maximum of 7 bar of water pressure.
- Flow rates: 8-16 lpm.
- Specifications for Gravity Pumped.
- Comes with an integral pump.
- Suitable to work with low-pressure water systems.
- Requires a minimum of 0.1 bar and a maximum of 1 bar of water pressure.
- Flow rates: 10-16 pm.
